YMCA Trophy Case Design

YMCA Trophy Case Design Case Study

The YMCA Trophy Case Design project celebrates the accomplishments of the YMCA community by creating a modern and functional display. The project focuses on clean lines, durable materials, and a versatile layout to showcase awards and memorabilia, while enhancing the overall aesthetic of the facility.

Final Iterations

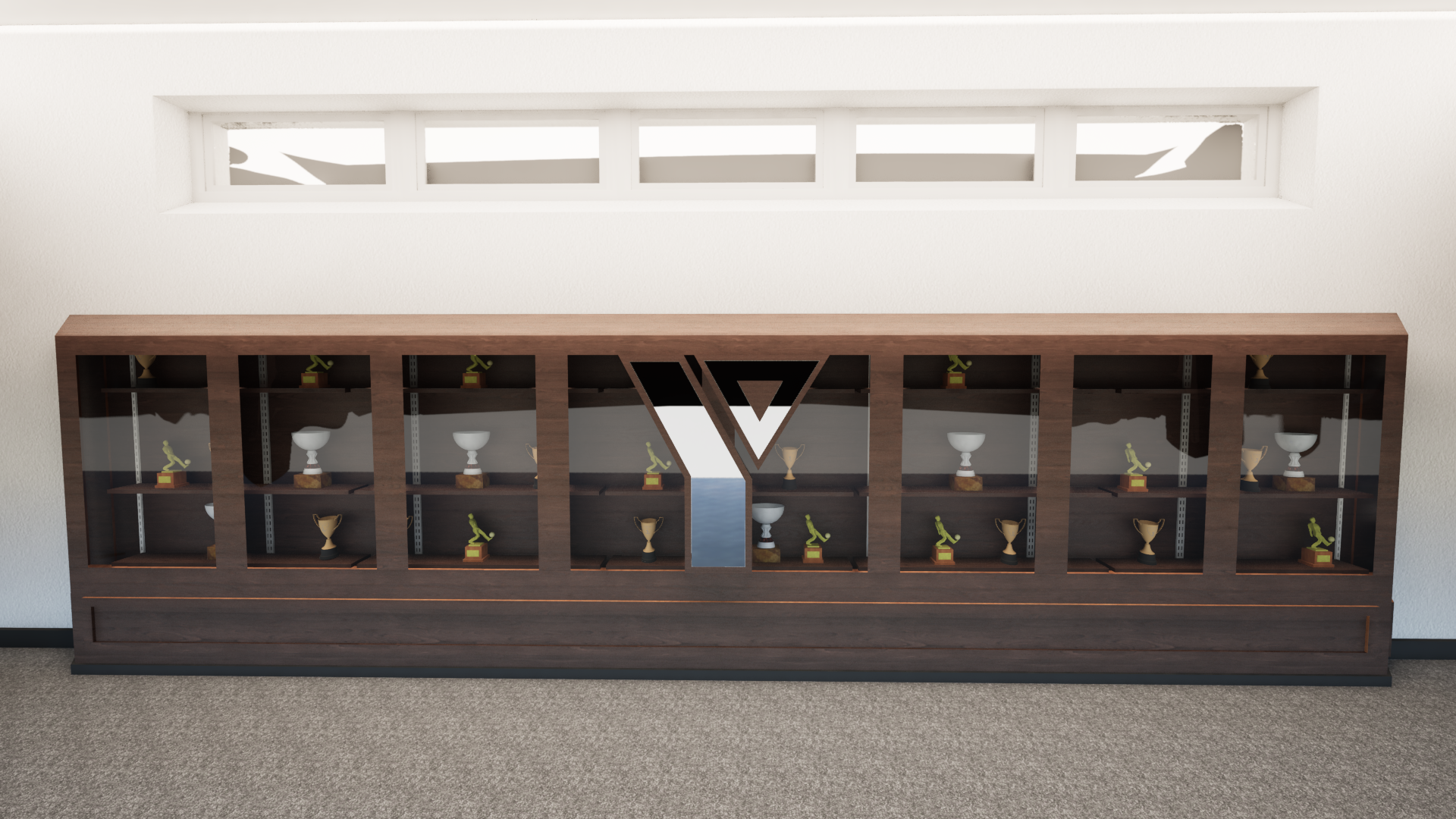

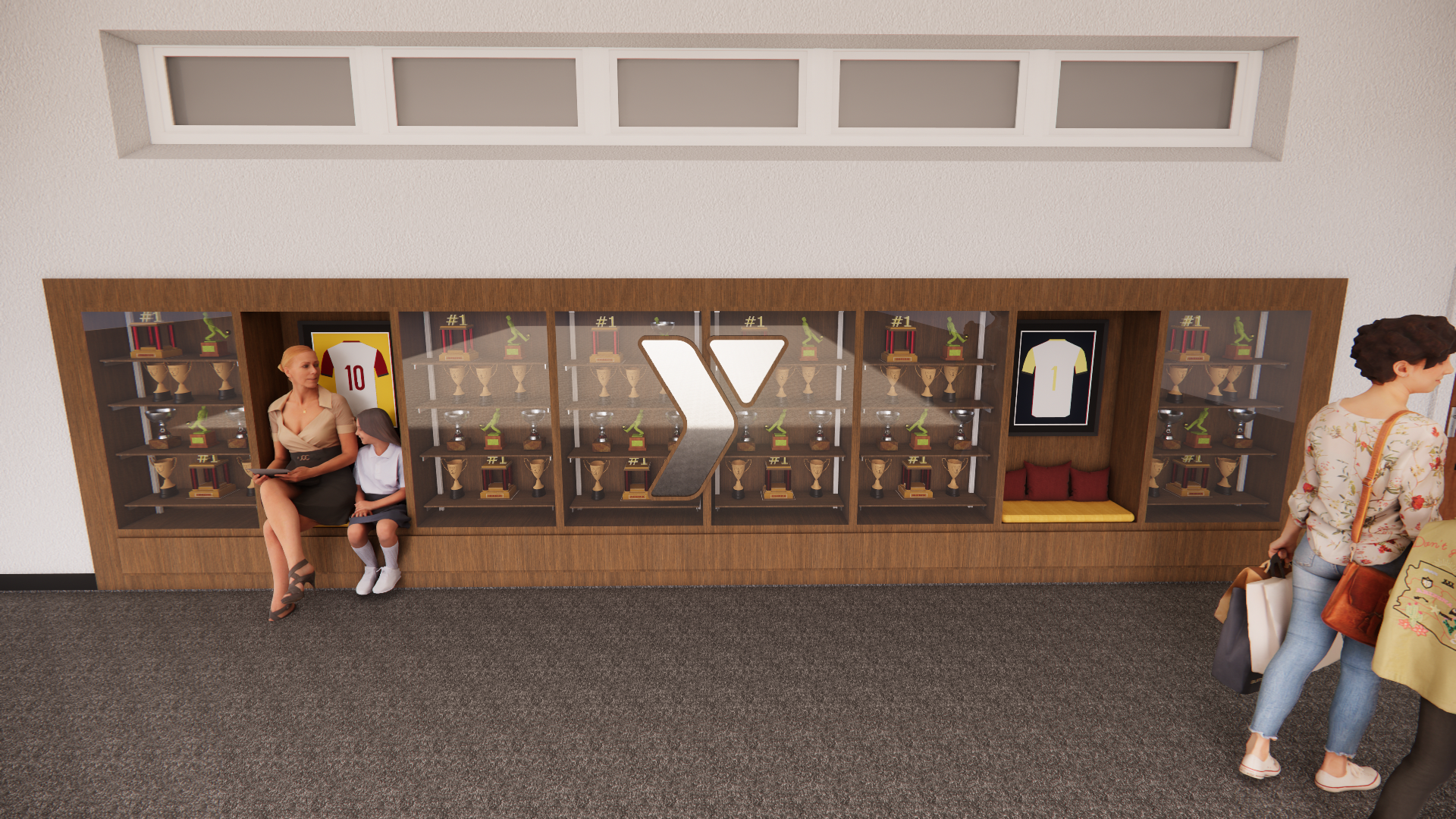

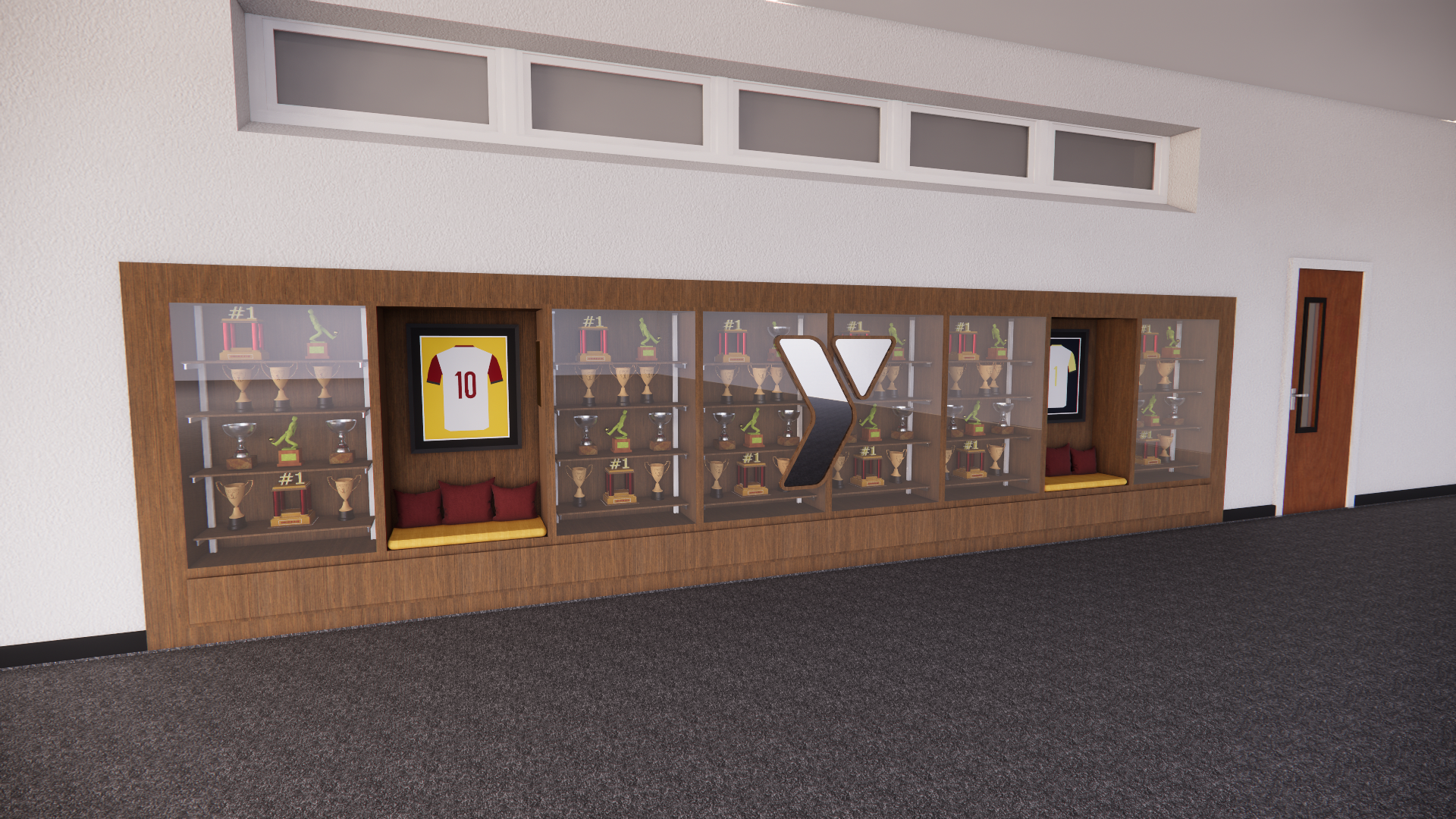

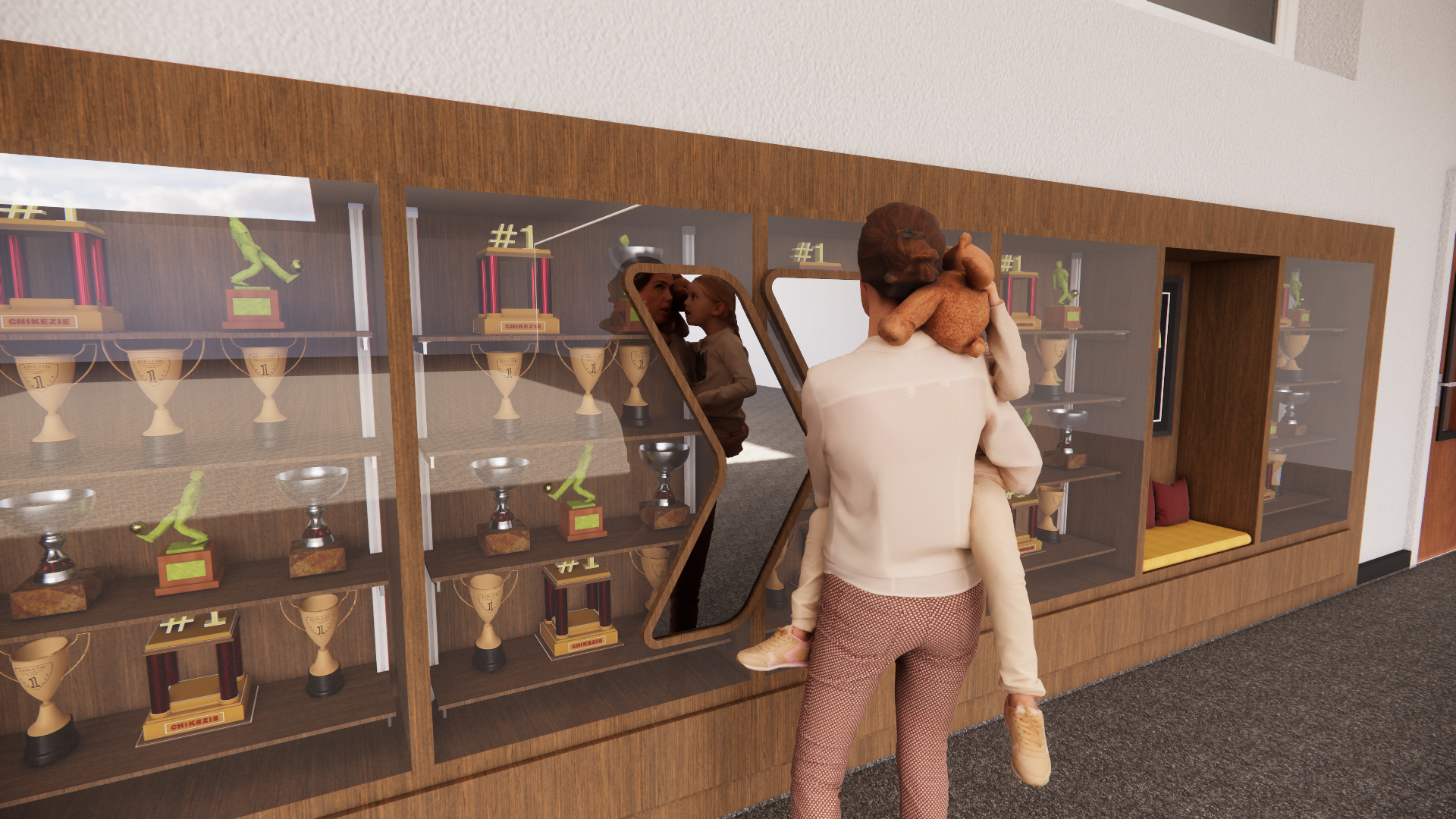

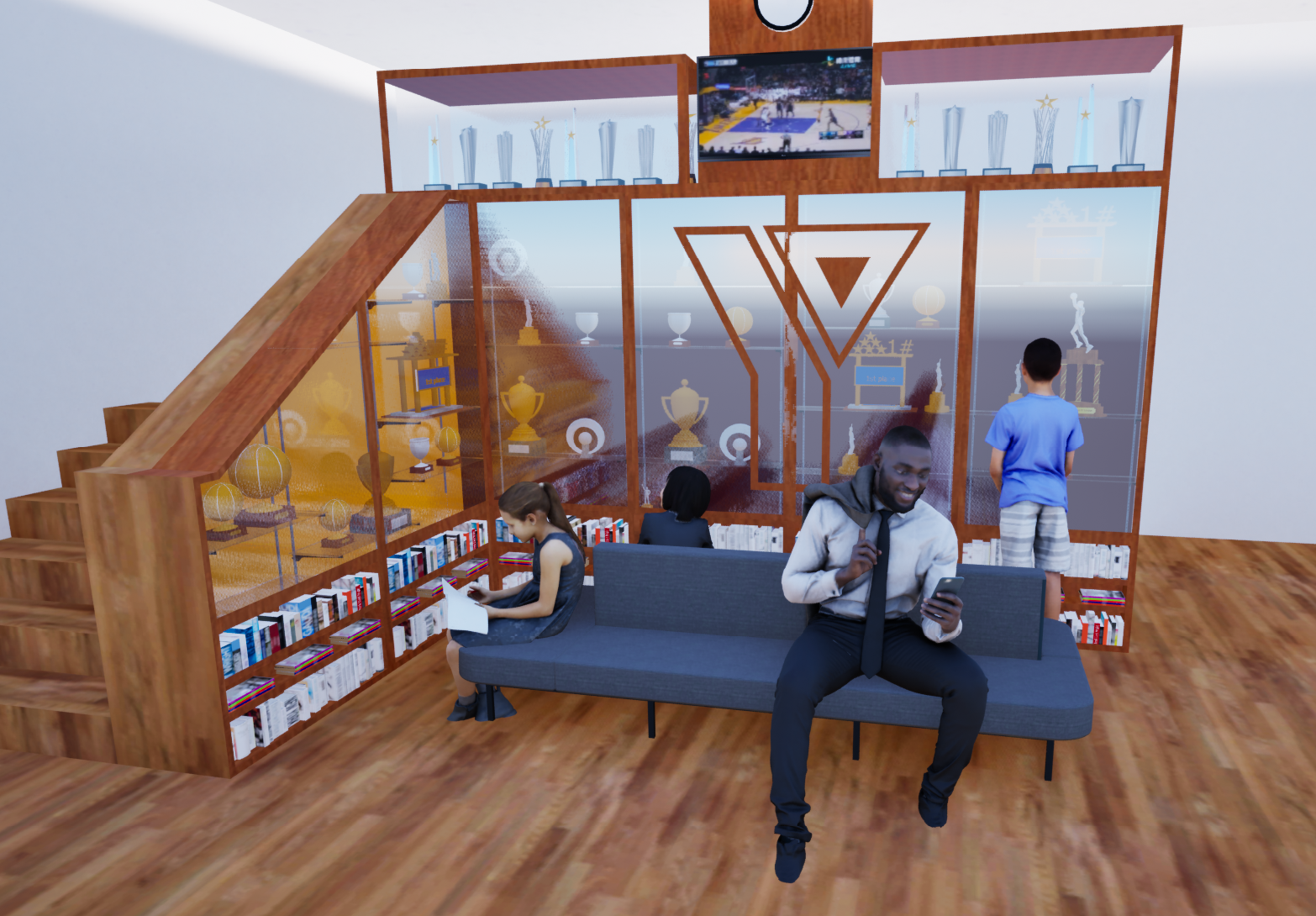

Locker Final Iteration 1: Rendered final visualization of locker design iteration 1.

The two trophy cases under review highlight distinct design approaches. One prioritizes elegance and visual impact, using premium materials to create a striking centerpiece. The other emphasizes functionality and adaptability, designed to maximize storage and ease of use while maintaining a polished appearance. Together, they represent a balance between aesthetic appeal and practical utility, reflecting the diverse needs of the YMCA community.

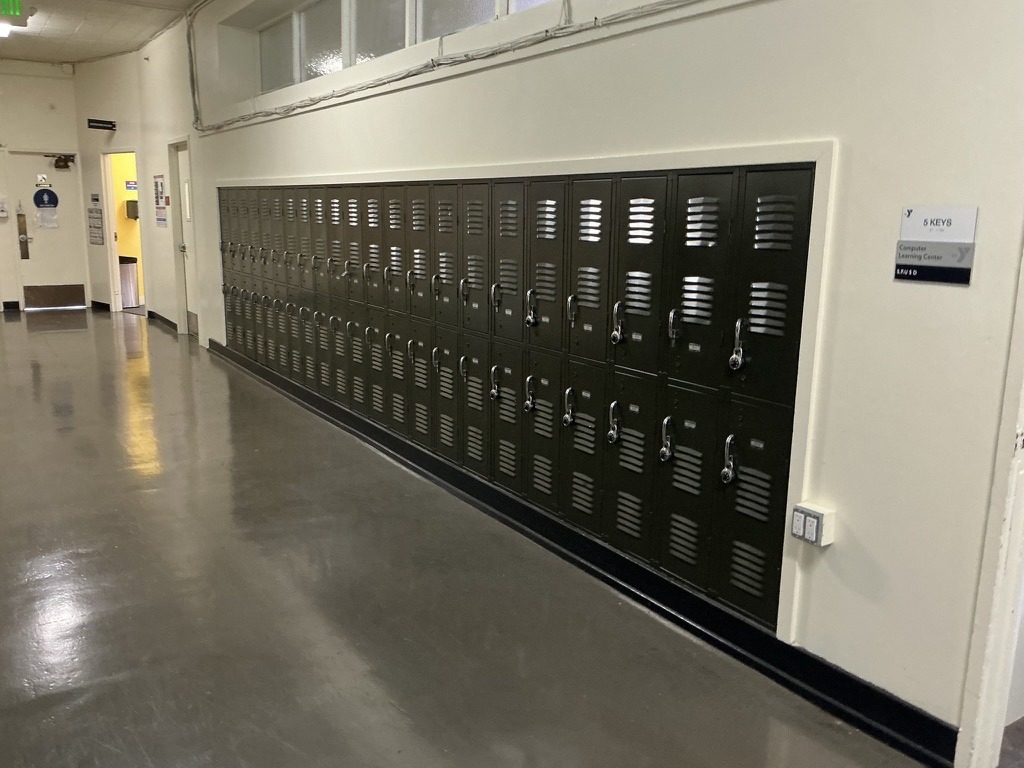

Project 1 - Locker: Site Visits, 3D Scans, and SketchUp Conversion

Site Visit & Data Collection: Conducted site visits and used a handheld LiDAR scanner to capture the dimensions and spatial layout of the area designated for the trophy case.

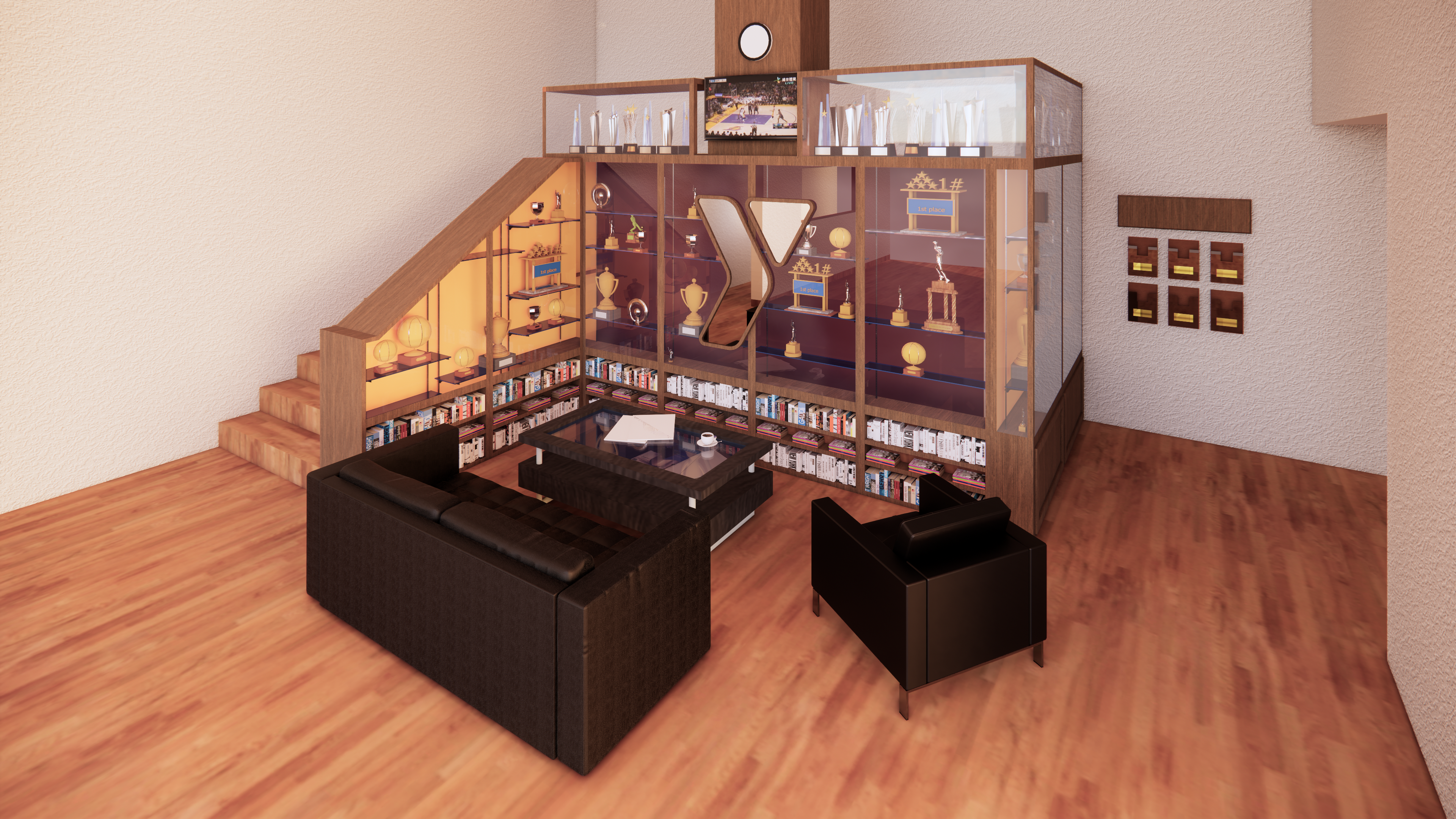

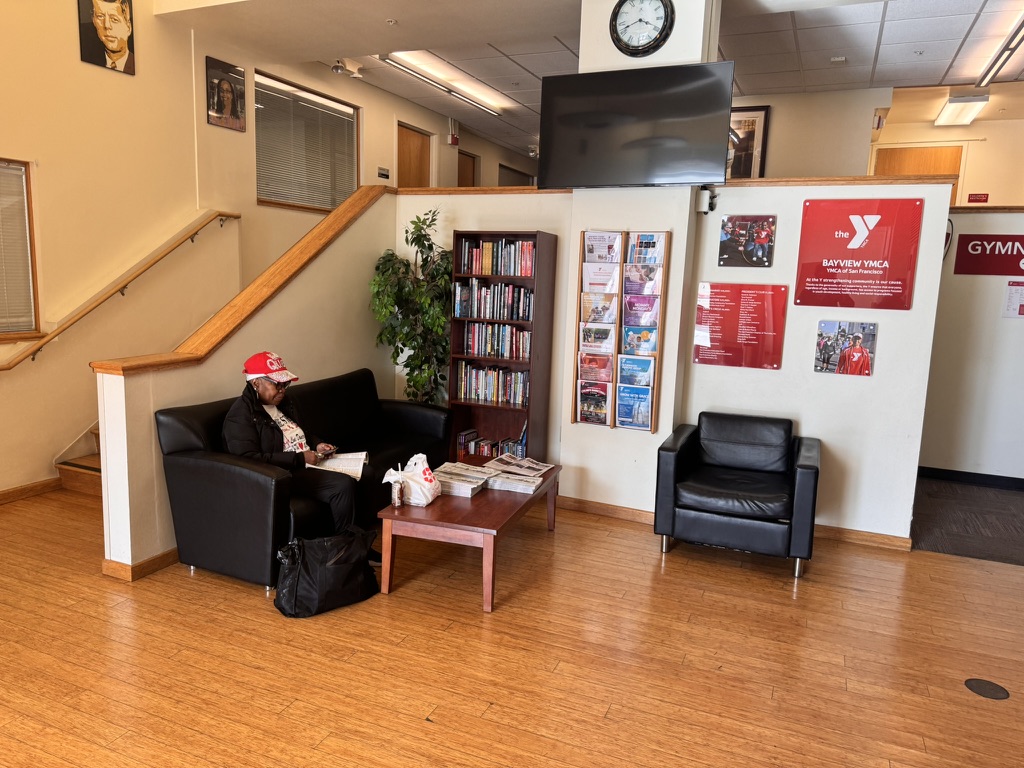

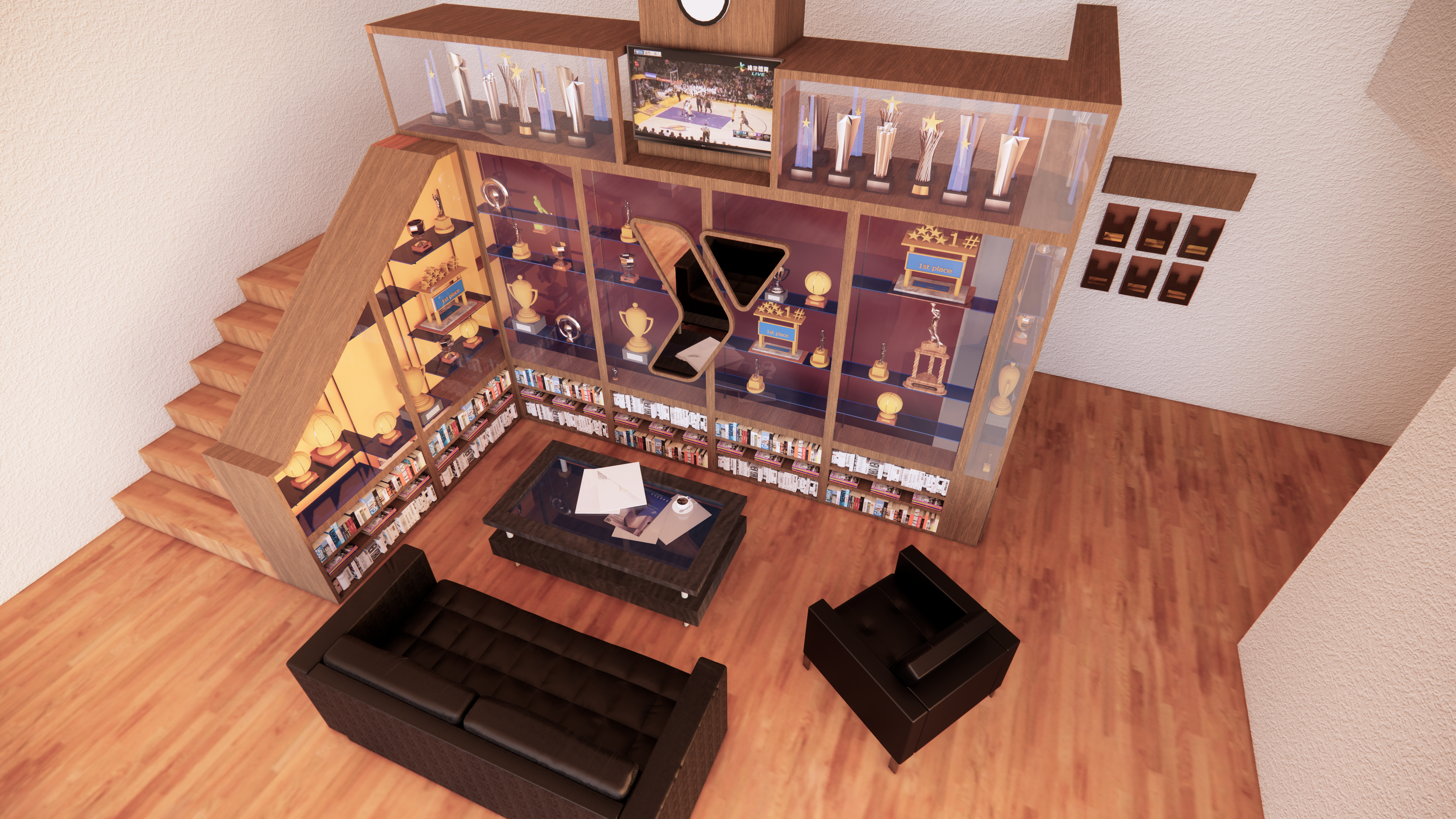

Project 2 - Lobby: Site Visits, 3D Scans, and SketchUp Conversion

Site Visit & Data Collection: Conducted site visits to the lobby area and used a handheld LiDAR scanner to capture the dimensions and spatial layout of the space designated for redesign.
